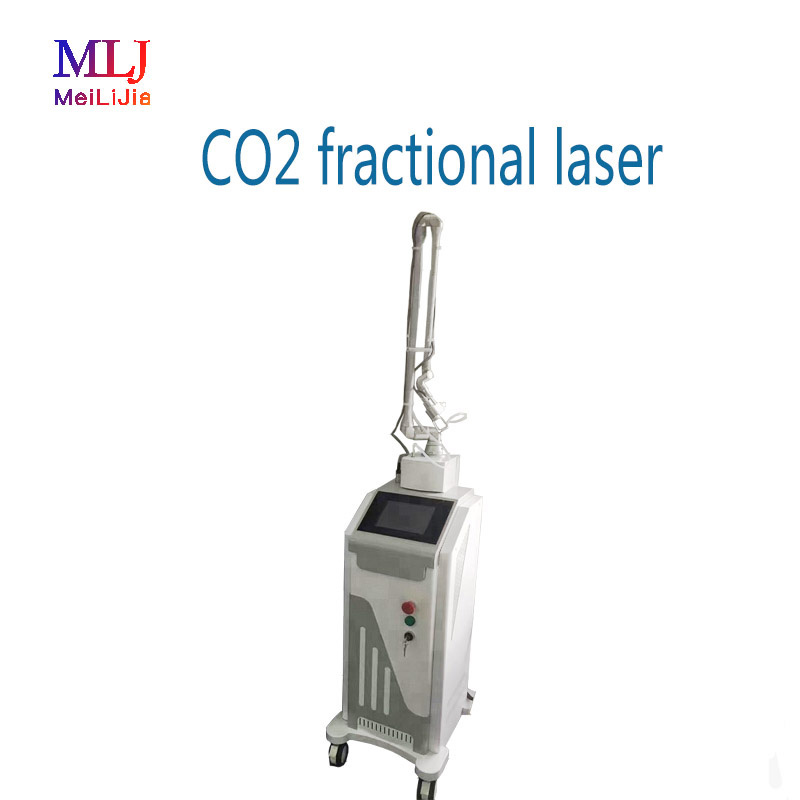

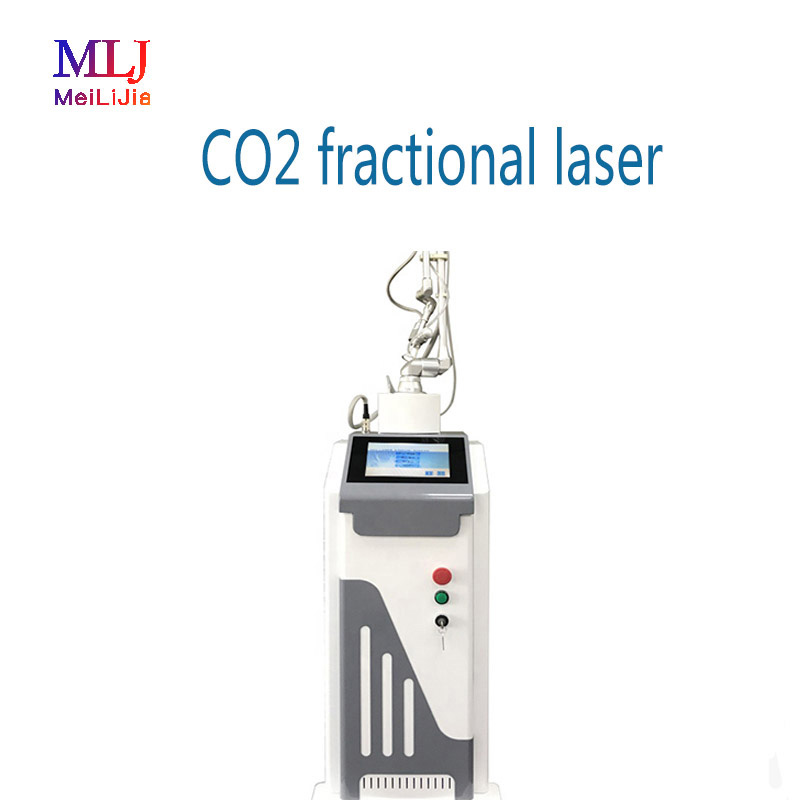

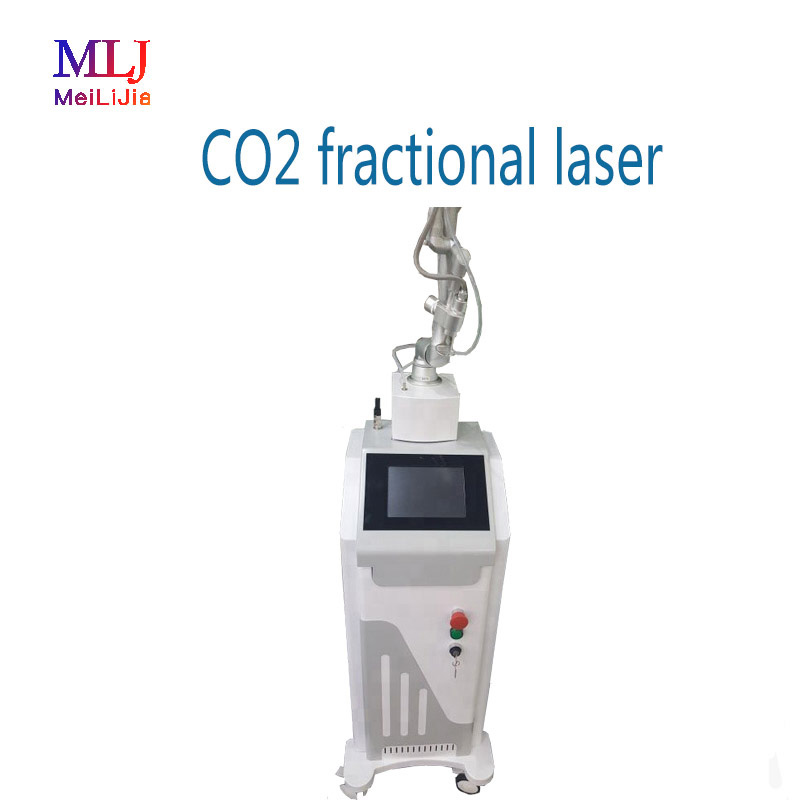

ND YAG Q-switched Co2 Fractional laser tattoo machine

Co2 Laser

Type: Laser
Laser Type: CO2 Laser
Q-Switch: Yes
Model Number: ME-5003
Product description: Style:Portable Certification:CE ISO CFDA Place of Origin:Guangdong Brand Name:ADG Feature:Blood Vessels Removal, Anti-Puffiness, Pore Remover, Face Lift, Pigment Removal, Pigmentation Correctors,
INQUIRY

Non-invasive fractional co2 laser medical use for skin resurfacing

$New style co2 fractional laser skin treatment with cutting laser head factory cost for commercial use home use$

Principle:

Fractional photo thermolysis creates an array of microscopic thermal wounds, called microscopic treatment zones,

at specific depths. Unlike other ablative and nonablative lasers, which produce layers of thermal heating, the FP

creates microscopic columns of thermal damage, sparing surrounding tissues and promoting more rapid healing.

The FP treatment results which are collagen remodeling and skin turnover are excellent. Removing lentigines and

other discolorations and producing fresher, tighter, and more youthful skin could be little to no downtime.

Technical specification:

Wavelenghth	10600nm
Laser apparatus	Sealed off laser device simulated by direct current
Optical beam quality	TEM00
Output power	40w
Spot size	0.02~0.05mm2
Aiming beam	Red semiconductor laser (635nm, less than 5mw)

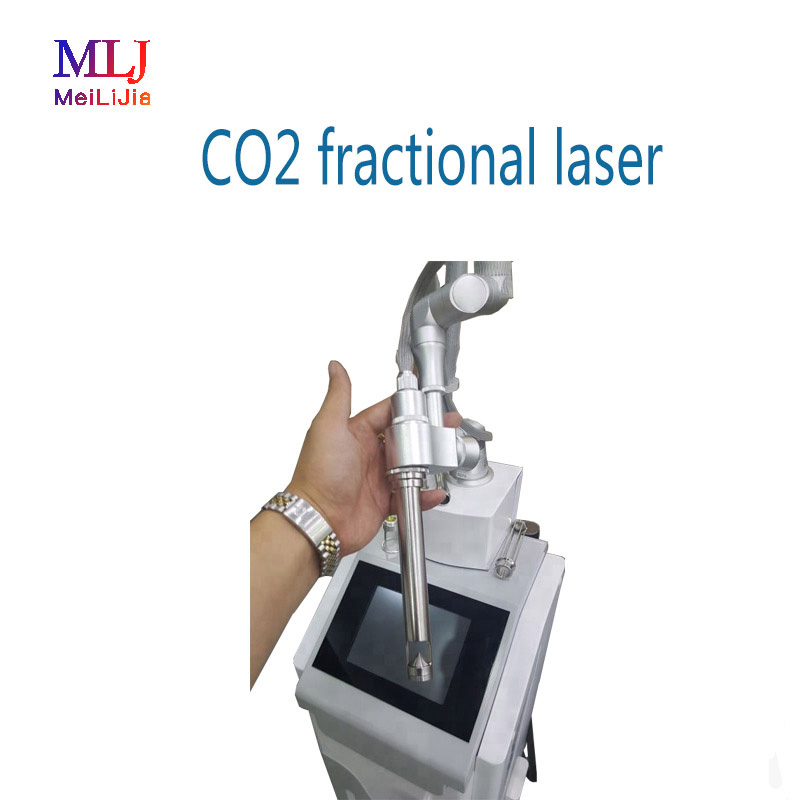

Beam transport device	Articulated arm with 7-joint and balance weight
Working mode	Continuous operation
Output Mode	Continuous, single pulse, interval pulse and super pulse
Scan scope	Max 20mmx20mm
Scan graphics	Circle, triangle, square, rectangle,hexagon, ellipse, line
Scanning Mode	Random , Normal and Midsplit scan
Scanning speed	More than 10m/s
Energy	1- 40W
Distance	0.1-2.6mm
Cooling system	air circulation
Weight	60kg
Dimension	1206590cm
Power	220V/110V
